VESSEL : HANLA AIR PURGE SYSTEM CT-180

PORT : JSL

JOBNO :20150129

EQUIPMENT :   DRAFT GAUGE | BALLAST GAUGE

DATE : 10/3/2015

MAKE : HANLA

MODEL : CT-180-EPN

 HANLA AIR PURGE SYSTEM CT-180

This method is also known as bubbler method of level measurement. A pipe is installed vertically with its open end at the zero level. The other end of the pipe is connected to a regulated air supply and to a pressure gauge or to ^P transmitter. To make a level measurement the air supply is adjusted so that pressure is slightly higher than the pressure due to the height of the liquid. This is accomplished by regulating the air pressure until bubbles can be seen slowly leaving the open end of the pipe. The gauge then measures the air pressure needed to over come the pressure of the liquid.

ITEM

DESCRIPTION / REMARKS :

1

JOB DESCRIPTION:



To health check and calibration of Ballast and Draft Gauges.



Ballast Gauges-14 nos

Draft Gauges -4 nos

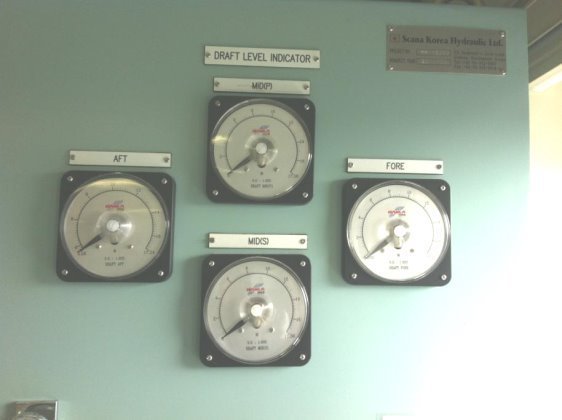

HANLA DRAFT BALLAST LEVEL INDICATOR

















2

HEALTH CHECK :



Durring the healthcheck Found System full of oil contaminated.



Gauge Saver

Safety chanber

Modulator

P/I convertor



HANLA MODULATOR



SERVICE:

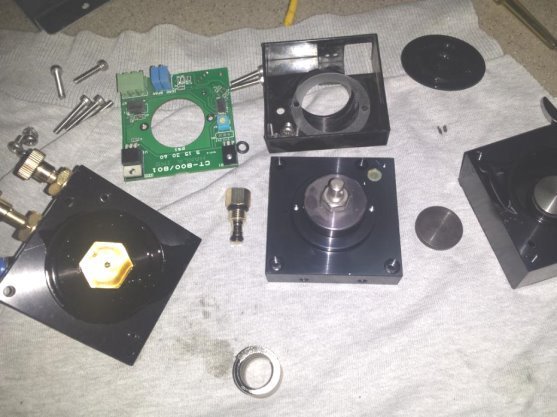

Removed 18  nos modulator and Complete overhaul done.



































3

CALIBRATION :

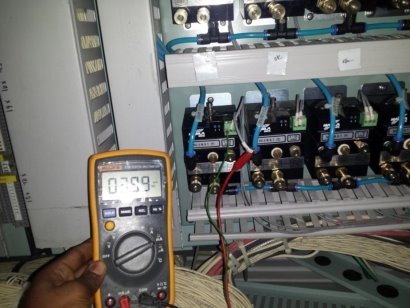

Carried out settings and calibrations.



HANLA P/I CONVERTOR

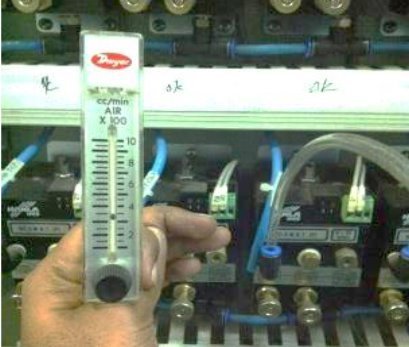

AIR PURGE FLOW REGULATOR

4

TESTING:



After calibration and  setting tested the system with actual level satisfactory.

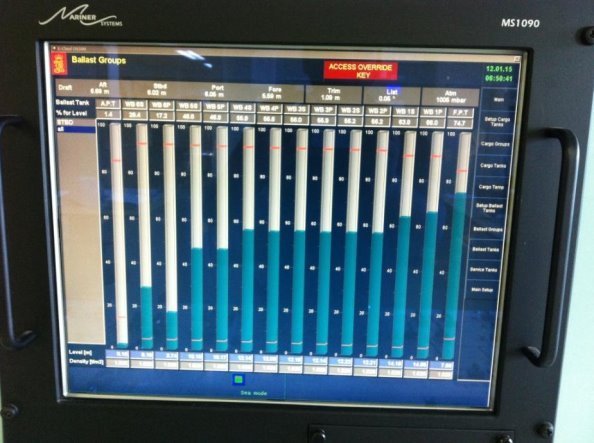

KONGSBERG LEVEL MONITOR





Checked and satisfied by C/O and Captain.
