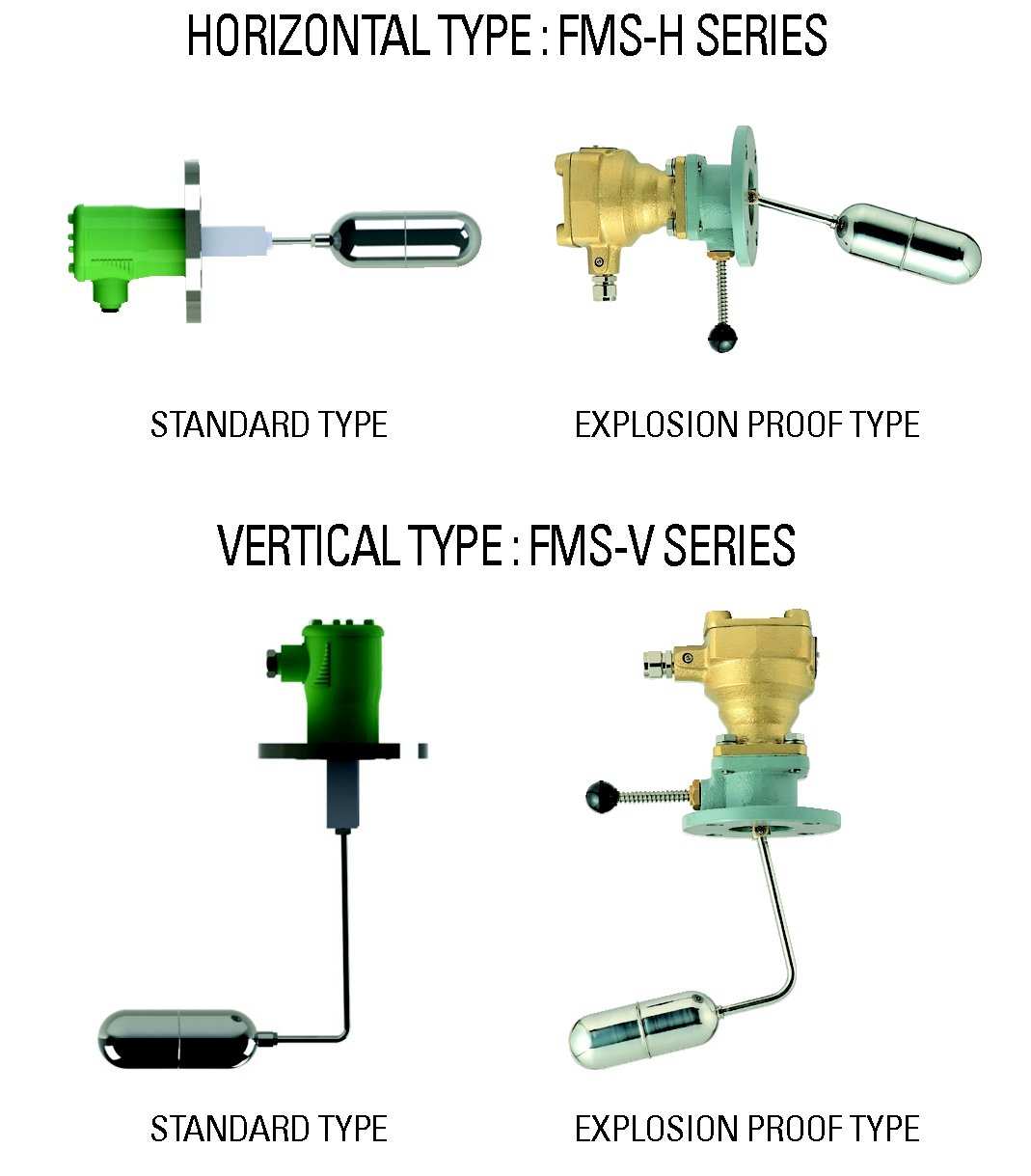

Hanla Level Switch

FMS Series

-Horizontal Type
-Vertical Type

Features:
-Fully sealed
The switch unit is completely separated from the parts inserted within the tank by non-magnetic diaphragm. -Reliable Designed compact, it has a large contact rating of 250 VAC, 5 amp. -Easy Maintenance Simple designed switch unit for easy maintenance. -Durable Float Argon gas welded stainless steel floats are durable for pressure and temperature.
HANLA FMS LEVEL SWITCH

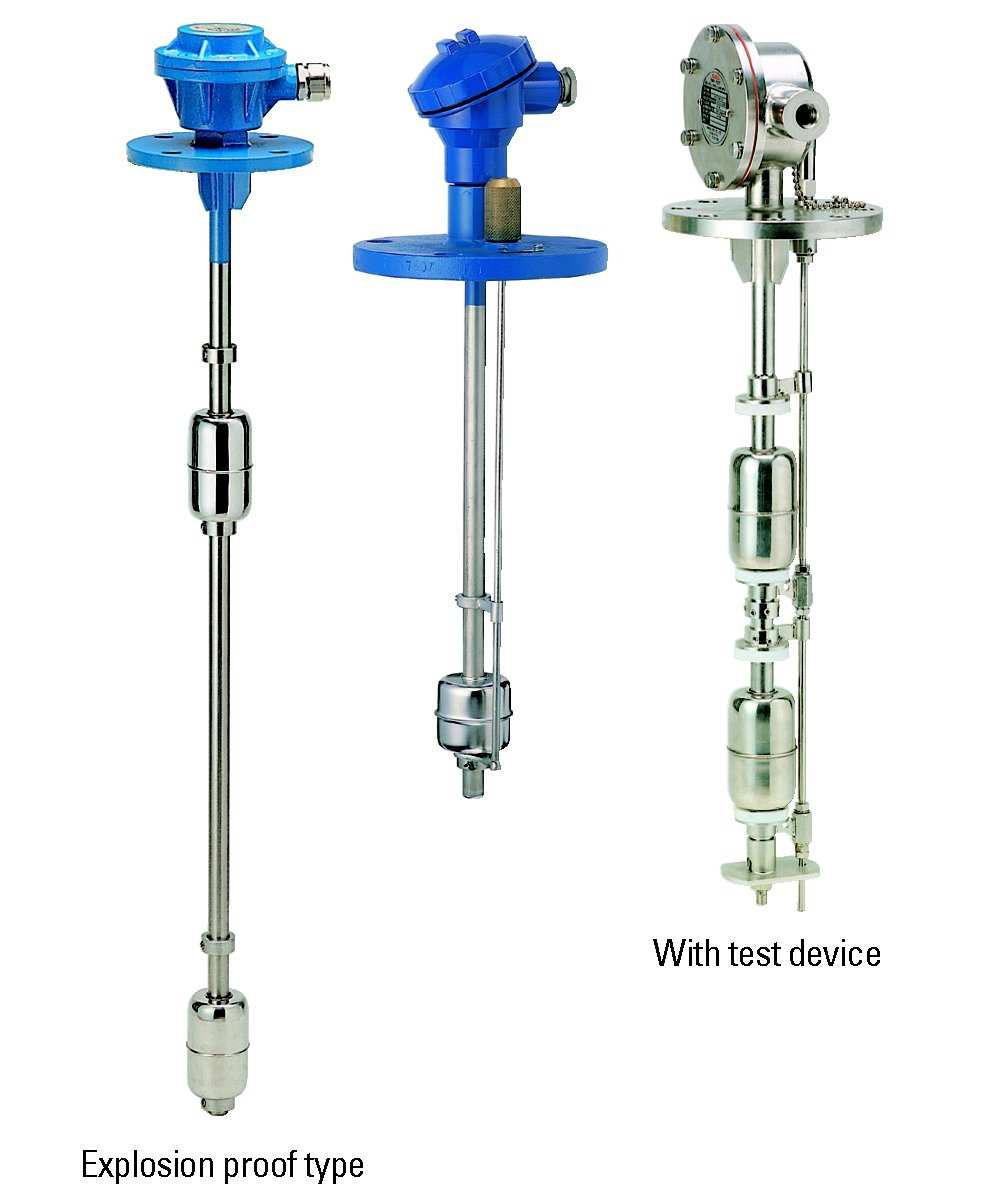

TMR Series
-Reed Switch Type

 Features:
-Compact Construction
-Stainless Steel and Plastic Models
-Totally enclosed electric parts
-Wide Selection of switch functions and ratings
-Easy Maintenance
HANLA TMR REED SWITCH

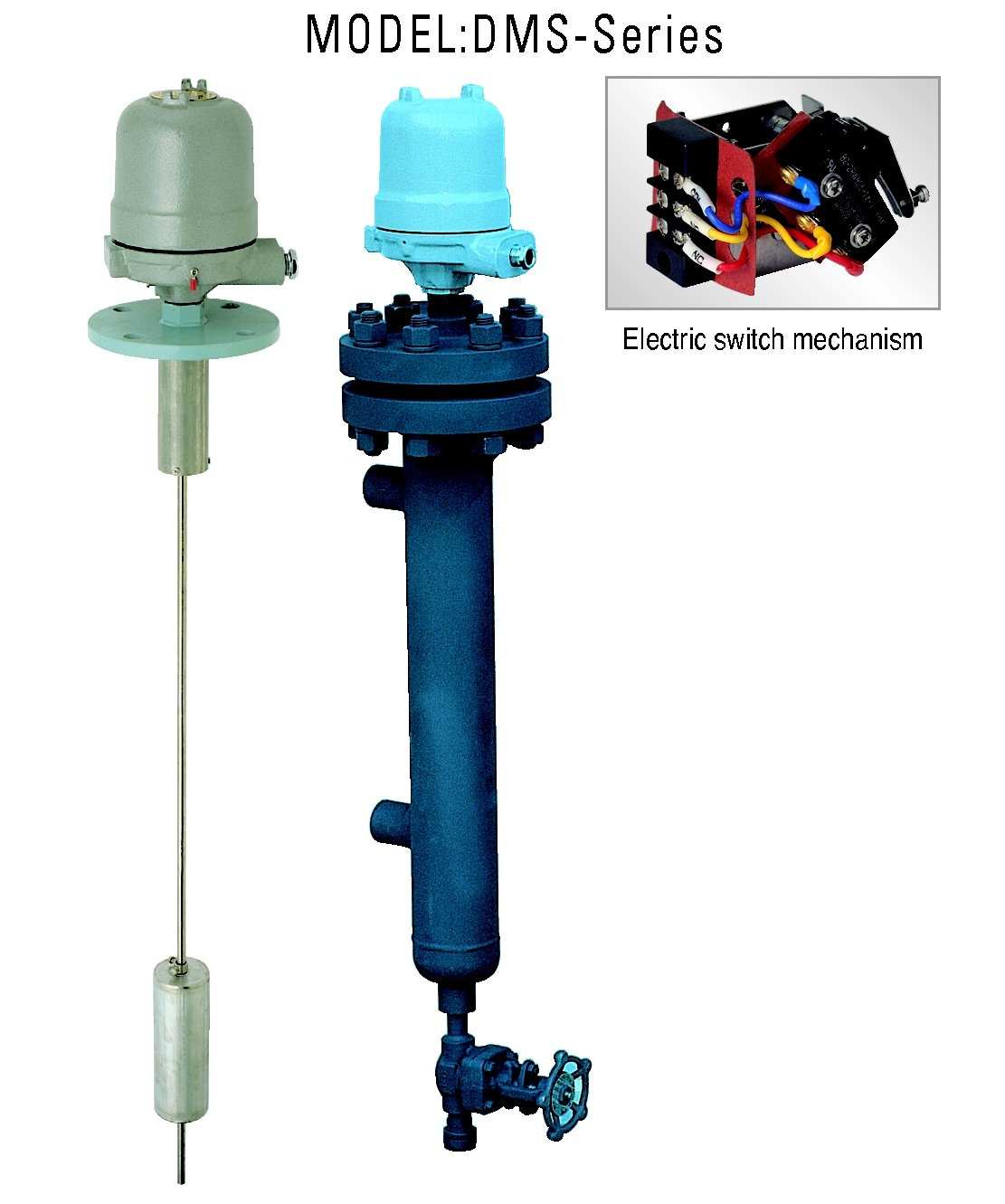

DMS Series
- Displacement Type

 Features:
-Wide differential
-Fully sealed
-Reliable
-Large contact rating of 250 VAC, 15 amp.
-Easy Maintenance
-Durable Float
-Unaffected by liquid agitation
DMS SWITCH

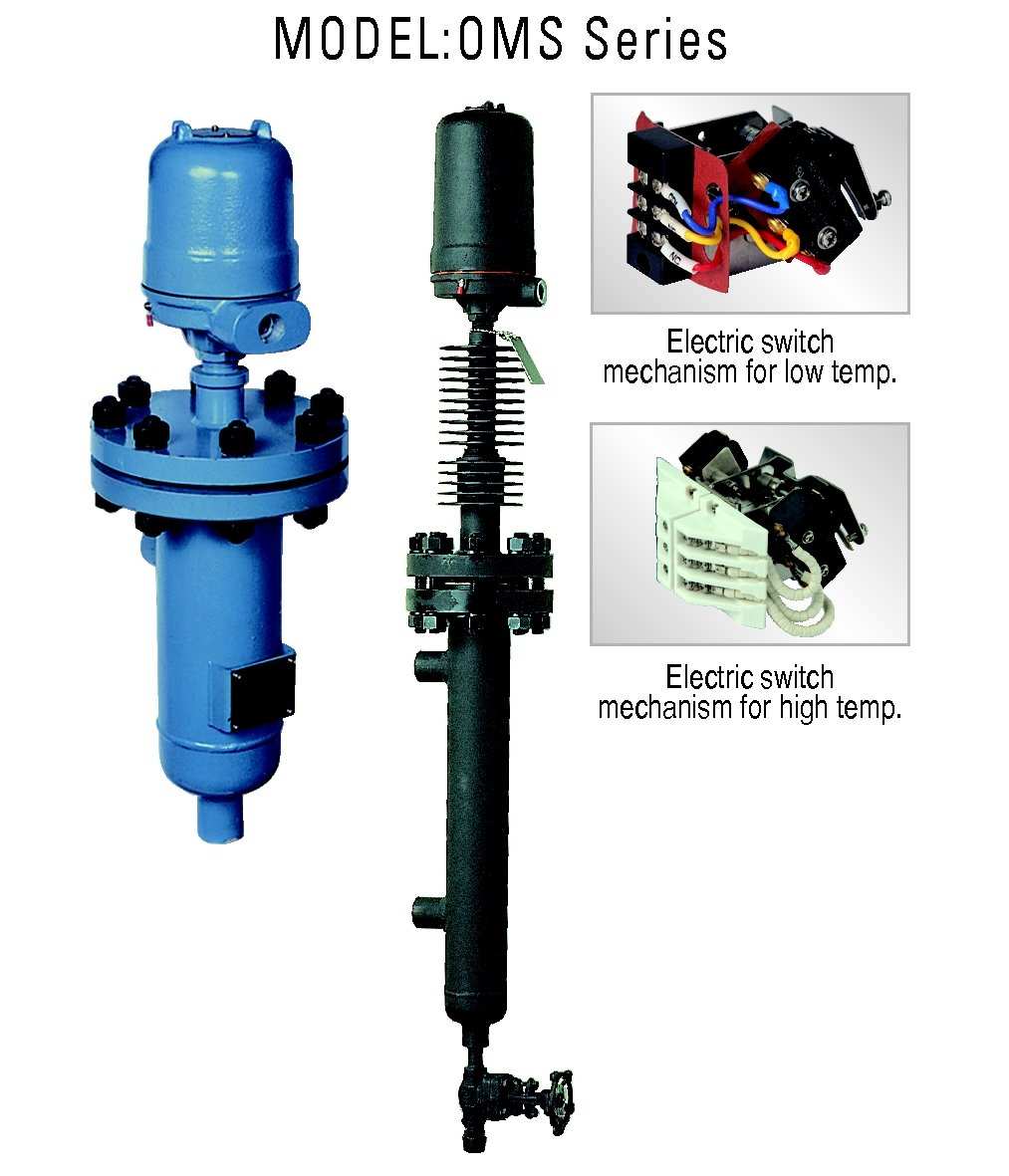

OMS Series
- Float Operated Type
Features:
-High load carrying capacity
-Environmental Safety
-Vibration resistance 		OMS LEVEL SWITCH

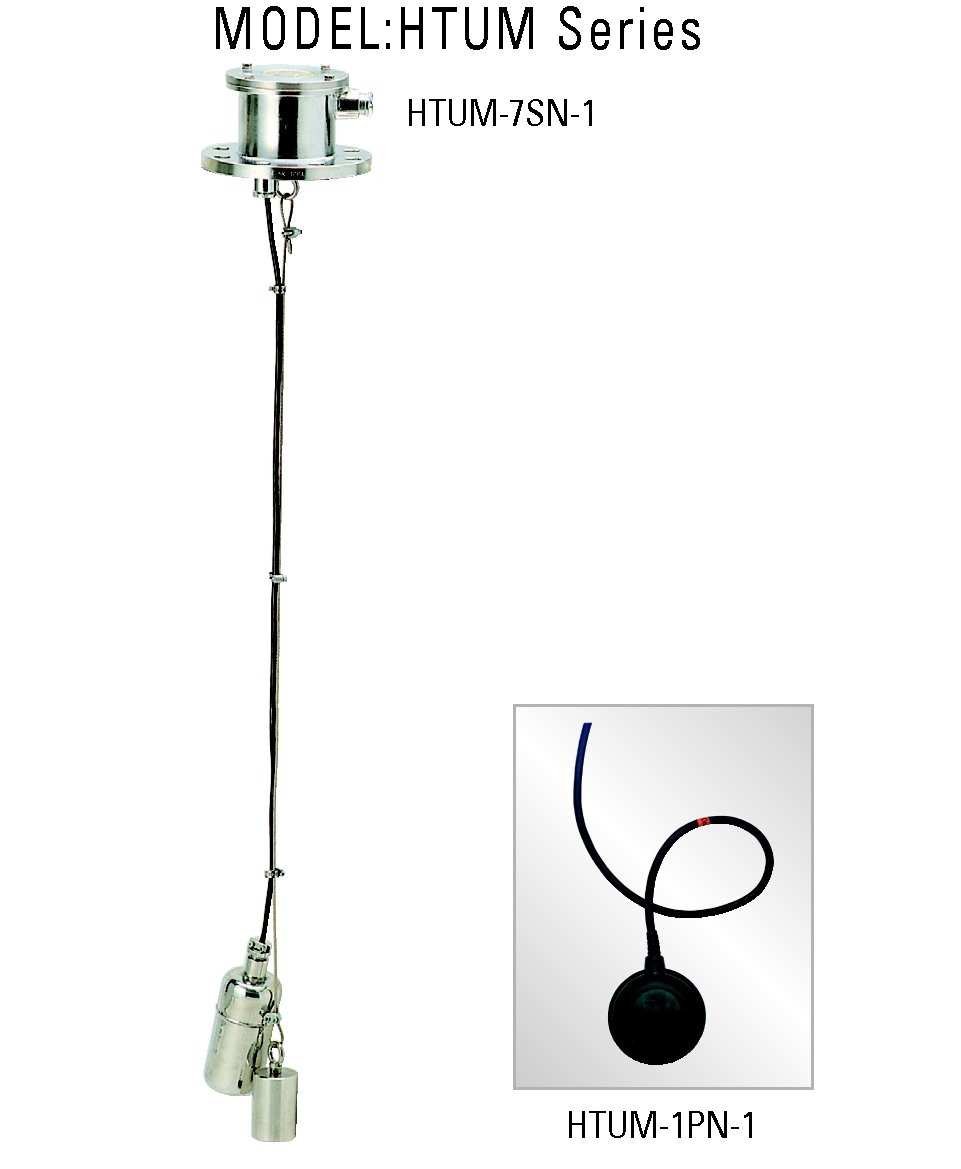

HTUM series
-Quick Float Type

Features:
-Simple and low cost design
-Stainless Steel and Plastic Models
-Easy Installation and maintenance
HTUM series

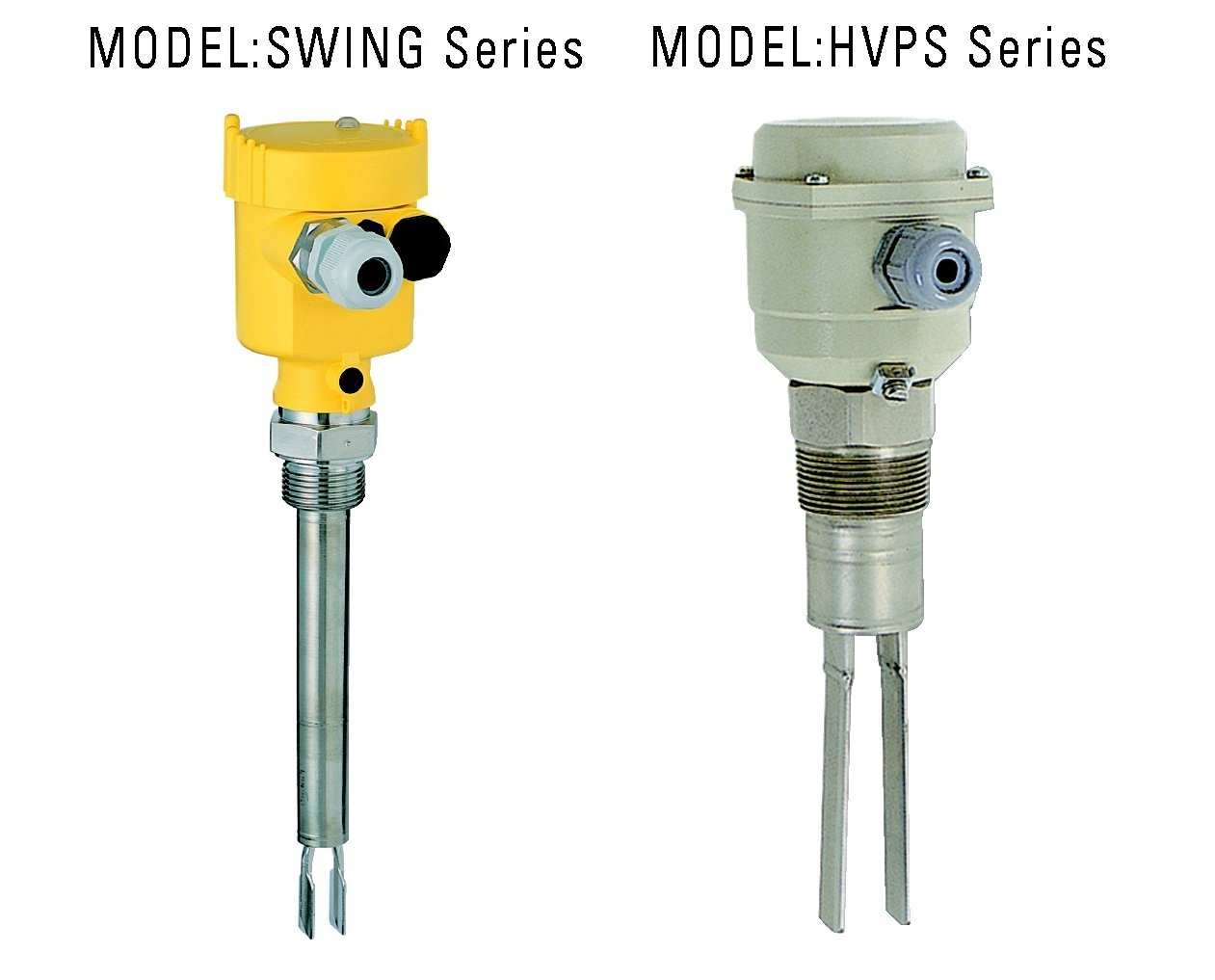

SWING, HVPS, RN3000, etc
-Paddle Type
-Oil Detector
-Vibration Type
Depending on switch type, application can be as follows: Heavy F.O. Tanks,
Settling Tanks,
Sludge Tanks,
Sewage Tanks,
Fresh Water Tanks,
Lub. Oil tanks,
D.O tanks and others. 		SWING, HVPS, RN3000

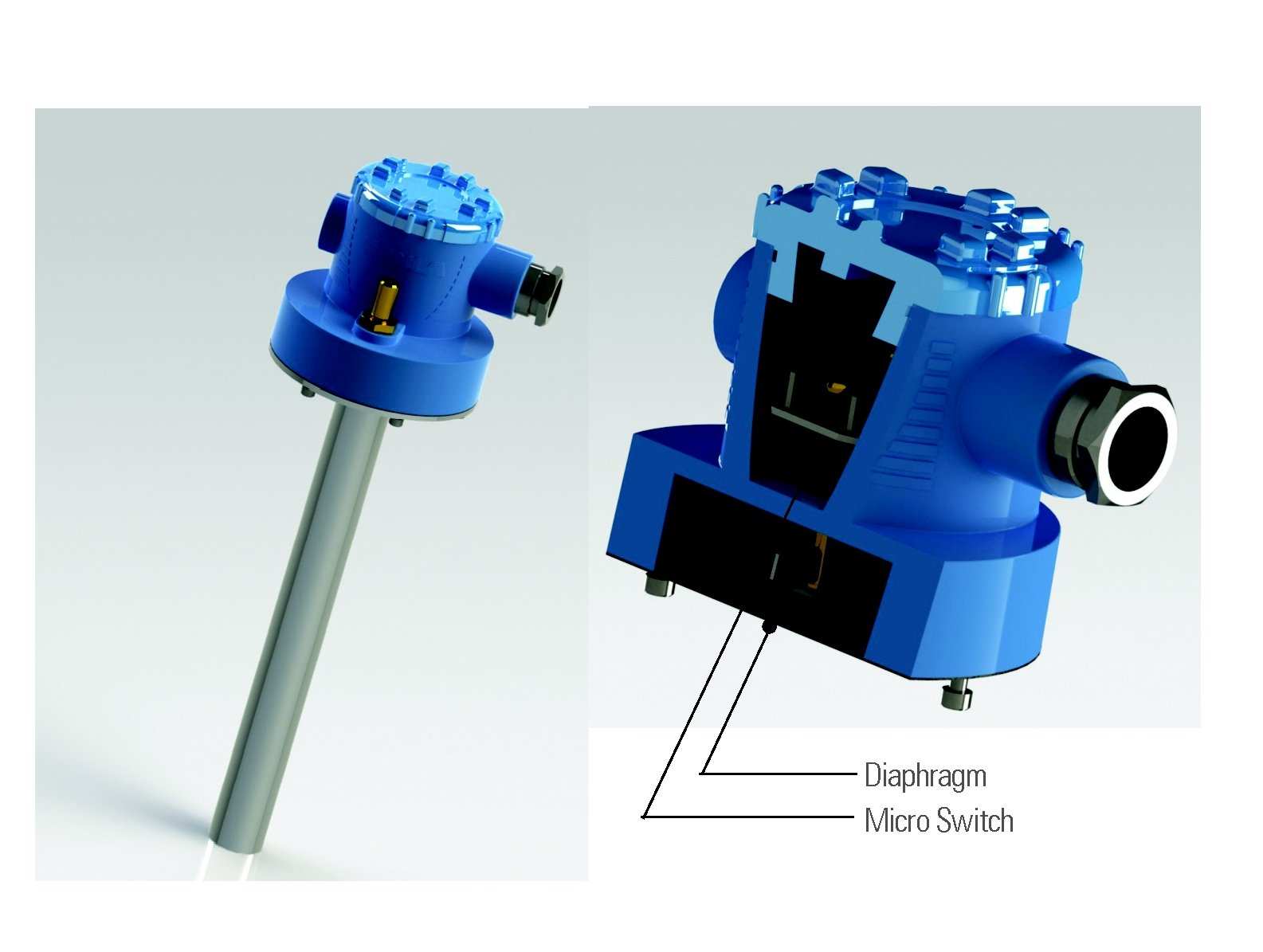

Pneumatic Type Level Switch

The pneumatic alarm switch can be used for all sort of liquids and is specially suitable for sludgy and high-viscosity liquid.
Because it is a non-contact type alarm switch without a float unit.
If liquid pressure is transferred through a pipe, the diaphragm is moved by difference with air pressure and then switch works on/off.		Pneumatic Type Level Switch


Download Catalogue Vol 1

Download Catalogue Vol 2
